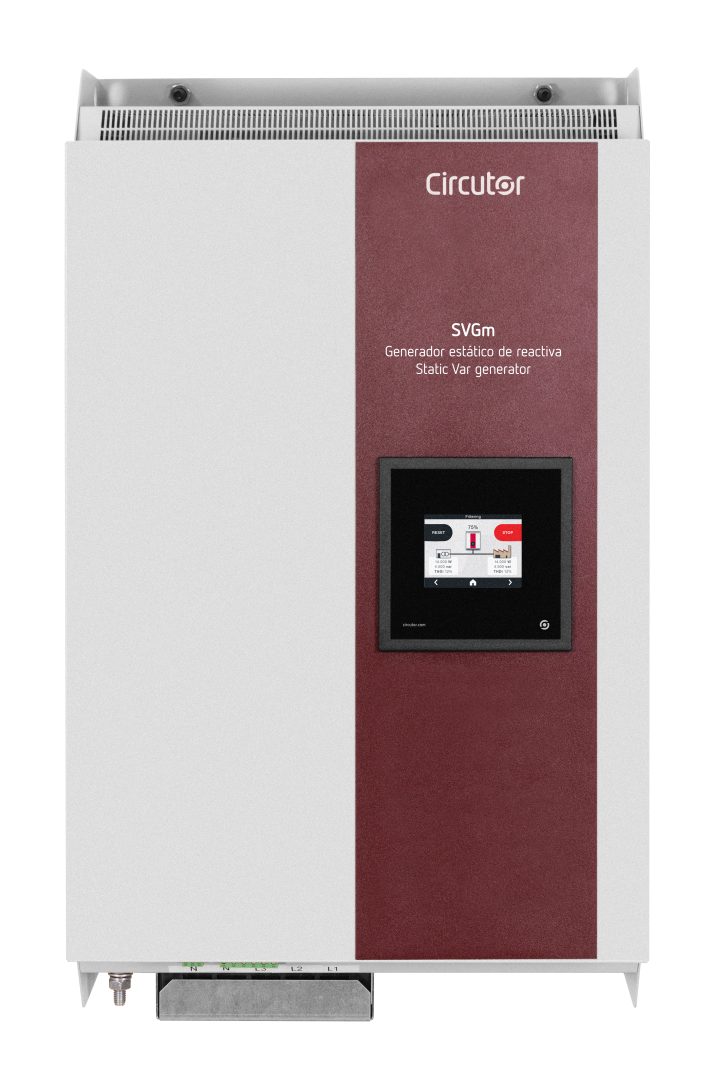

SVGm-3WF-100M-480, Static Var Generator with multilevel technology

SKU: R4P3M2.

SVGm cabinet-type static var generators are the most accurate power factor correction solution in both unbalanced three-phase systems and installations with inductive and capacitive reactive power. They can be used in three-phase industrial, commercial or service installations, and they are not affected by the installation’s harmonics. Much safer device with minimal maintenance. This product range features rack assembly in standard cabinets, designed to simplify installation.

Main Features

SVGm-3WF-100M-480, Static Var Generator with multilevel technology
EMI filter: 1
System: 3 wires, 230...480 V
kvar (230 V): 57,5
kvar (400 V): 100
kvar (440 V): 100
kvar (480 V): 100
Phase current: 145
Use voltage (V): 480

Find out more

Reactive power, whether inductive or capacitive, can lead to increased energy costs and inefficiencies in electrical systems.
The SVGm from Circutor provides a smart solution by automatically compensating reactive energy in real time.
Its advanced electronics enable precise power factor correction, reducing penalties and enhancing overall efficiency.
The SVGm’s modular design ensures easy installation and adaptability for different network configurations, while its low harmonic distortion minimizes interference.
This makes it ideal for industrial and commercial applications aiming to optimize energy use and reduce costs.
